Store LocatorProblemWhy are chunks of concrete falling from my ceiling, and why is the steel underneath rusted red?
There is perhaps no visual more terrifying for a property owner or a housing society manager than looking up and seeing the internal skeleton of their building exposed and decaying.

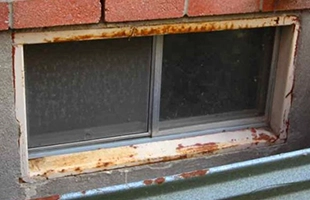

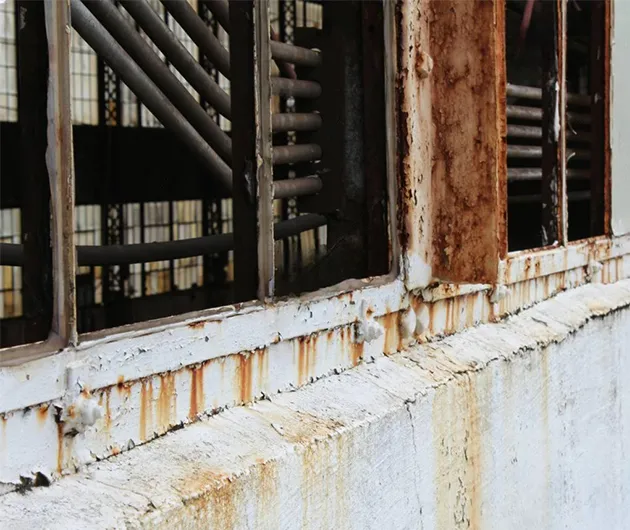

It usually begins as a faint, rust-colored stain seeping through the paint on a ceiling or the underside of a balcony. Then, long, straight cracks start to form along the concrete. Finally, without warning, a heavy chunk of concrete simply breaks off and crashes to the floor, revealing flaky, reddish-brown TMT steel bars beneath.
When this happens, the feeling of safety in your own home vanishes. Every time you park your car in the basement, you look at the crumbling pillars and wonder if today is the day they give way. If you are a builder who recently handed over a project, discovering early signs of corrosion is a nightmare that threatens your reputation and invites massive legal liabilities.
WhyThis Happens?
The "Cancer" of Concrete.
To stop the deterioration, you must understand the science of why buildings decay.

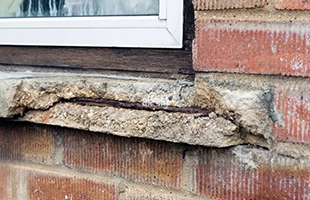

Steel is incredibly strong, but it has one fatal weakness: when exposed to oxygen and moisture, it rusts. In engineering terms, the phenomenon of concrete breaking off is called spalling. When a TMT steel bar rusts, it undergoes a chemical reaction that causes it to expand up to six times its original volume.
Here are the common mistakes that trigger this deadly cycle:
Missing Cover Blocks
High Chloride Content in Sand and Water
Using Unverified, Low-Grade TMT Bars
Poor Roof Waterproofing
This is the number one contractor mistake in India. When casting a roof or pillar, steel must be buried deep inside the concrete (usually 20mm to 40mm deep) to protect it from the air. Contractors often fail to use "cover blocks" (small cement spacers), leaving the steel resting right against the wooden shuttering. As a result, the steel sits dangerously close to the surface, easily exposed to moisture.
Using unwashed river sand, sea sand, or groundwater with high salt (chloride) content is a recipe for disaster. Chlorides act as a catalyst, aggressively eating through the alkaline protection of the cement and attacking the steel almost immediately after construction.
The market is flooded with cheap steel that lacks proper anti-corrosive properties. In humid regions like Eastern India, using standard steel instead of CRS (Corrosion Resistant Steel) in exposed areas drastically accelerates deterioration.
Persistent capillary action and roof seepage act as a constant supply of water to the internal steel framework, feeding the rusting process year after year.
HowINFRAHUB Solves?
The Engineered Pathway
You cannot cure concrete cancer with a coat of fresh paint. INFRAHUB provides a definitive, scientific remediation strategy to save your decaying structure, backed by 25 years of engineering expertise in structures built to withstand decades of harsh weather.
- 1
On-Site Structural Assessment
BUILDING Dr. begins with a Site Inspection. Structural engineers use Non-Destructive Testing (NDT) to determine how far the corrosion has spread, mapping all areas of active damage, including those hidden behind seemingly healthy plaster.
- 2
Chemical Diagnosis at Lab
Before any repair, the cause of the rusting must be established. INFRA.CLINIC — NABL-accredited laboratory tests concrete core samples for chloride and sulphate attack, and tests the remaining exposed steel for residual tensile strength to confirm whether it can still safely carry the building's load.
- 3
Engineered Remediation Strategy
Based on certified laboratory data, BUILDING Dr. designs a targeted retrofitting plan. All spalled concrete is chipped away behind the rusted bar. The steel is mechanically cleaned to bare metal. Zinc-rich epoxy anti-corrosive primers are specified to halt the rust, followed by bonding agents.
- 4
Factory-Direct Supply of Structural Repair Materials
Standard cement will not bond to old concrete. INFRAHUB supplies industrial-grade, non-shrink micro-concrete and polymer-modified mortars directly to your site, ensuring the repaired section is actually stronger than the original pillar or ceiling.
Related Services
Site Inspection & Structural Assessment
Have BUILDING Dr. map out the exact extent of the corrosion in the building.
Engineering Consultation
Get a step-by-step, scientifically calculated repair methodology.
Project Management Support
Certify the chloride levels in your concrete and the remaining strength of your TMT bars.
Related Products
PROCEMHUB
Access lab-verified waterproofing compounds, epoxy grouts, and elastomeric coatings.
See DetailsWATERHUB
Procure certified CPVC, UPVC, and SWR pipes that are guaranteed to handle high pressure.
See DetailsMETALHUB
Procure certified, high-yield TMT bars and premium cement for structural repairs.
See DetailsFrequently Asked Questions
Common Questions. Answered Clearly.
Can I just apply cement over the rusted steel to hide it?
Absolutely not. If you do not chemically treat and neutralize the rust first, the oxidation process will continue underneath the new cement. The steel will expand again, and the new cement patch will break off within a few months.
What are 'cover blocks' and why are they so important?
Cover blocks are small spacers made of concrete or PVC. They are placed between the steel reinforcement and the wooden formwork before pouring concrete. They ensure the steel is buried deep inside the concrete (providing 'cover'), which protects it from the moisture and oxygen that cause rust.
How does the lab prevent this before construction even starts?
Prevention is better than cure. Before construction begins, INFRA.CLINIC — NABL-accredited laboratory tests construction water and sand for chlorides and sulphates. Where high salt levels are detected, BUILDING Dr. advises on the water source or specifies corrosion-resistant cement to prevent rust from ever starting.
Is my building going to collapse if I see one rusted bar?
One rusted bar does not mean immediate collapse, but it is a critical warning sign that the protective alkaline environment of your concrete has failed in that area. It requires immediate engineering assessment to ensure the structural load path is still safe and to prevent the corrosion from spreading to the main load-bearing columns.
